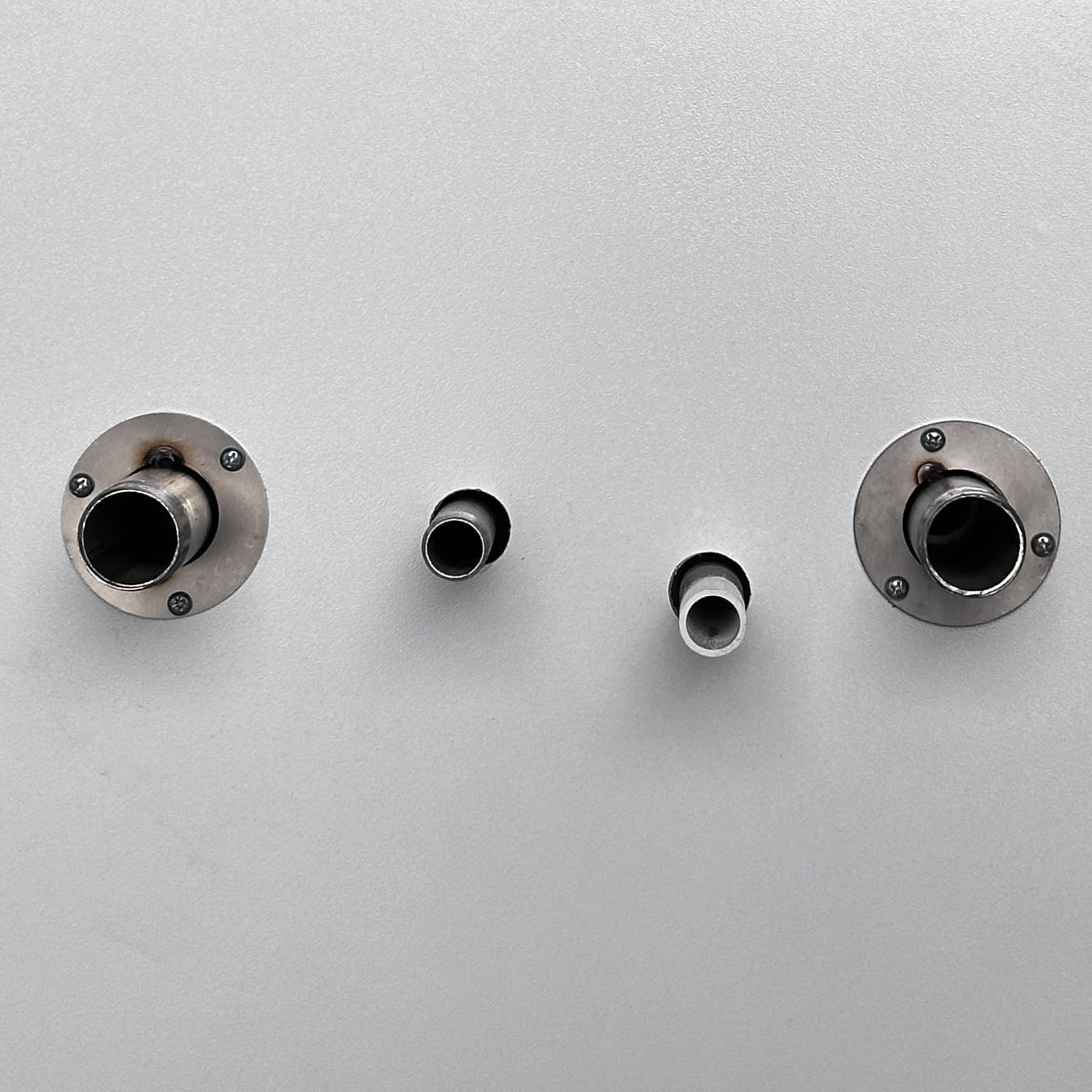

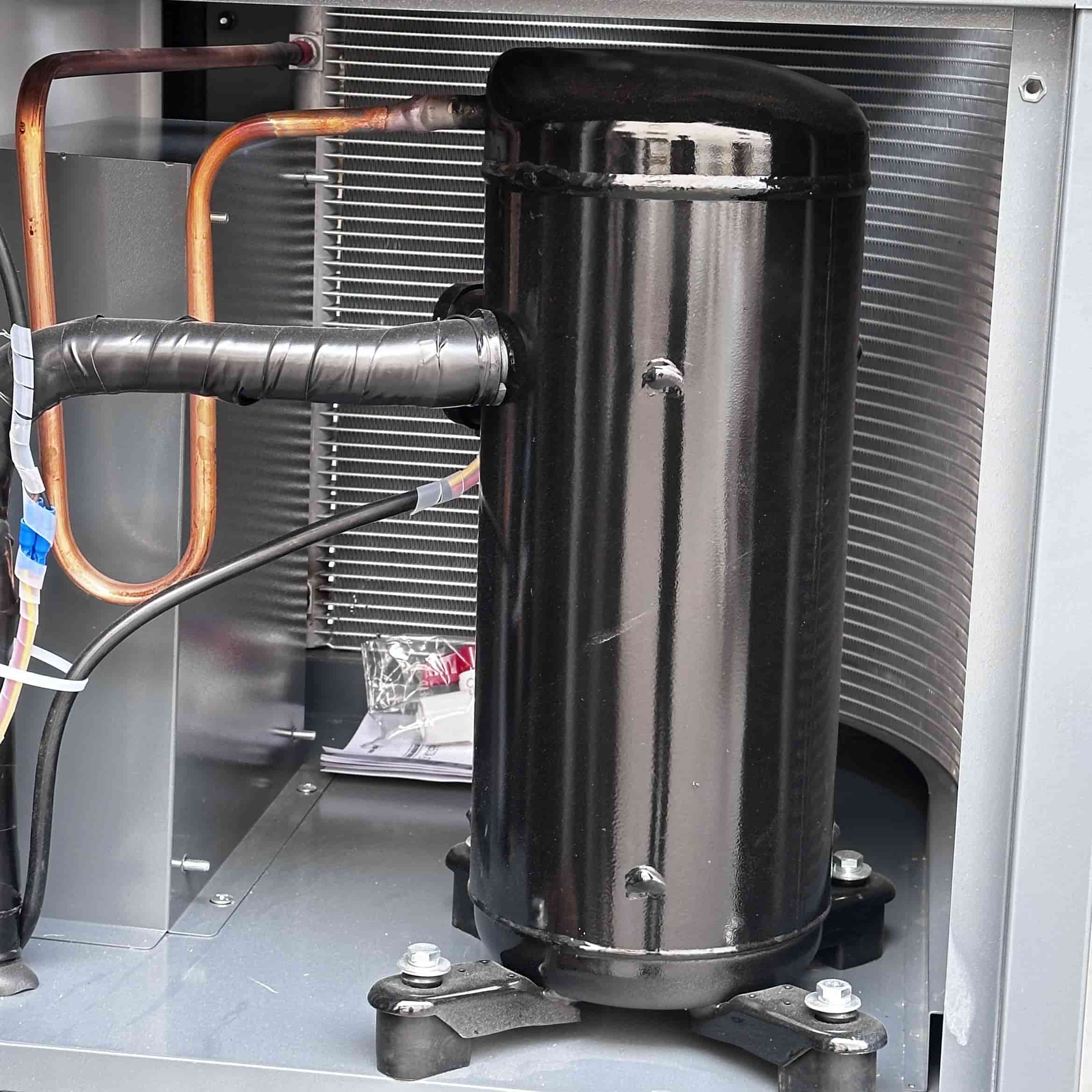

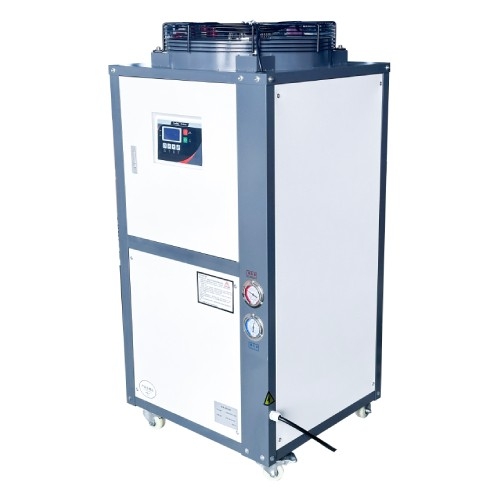

Equipped with a Gree/Panasonic/Copeland original fully enclosed scroll compressor and Schneider contactor. The air-cooled chiller has stable operation, low noise, and low maintenance. Equipped with a thickened insulated water tank and stainless steel connection parts. Supports plug-and-play, quickly adapting to industrial, commercial scenarios.
Order(MOQ):
1ProductOrigin:
Huizhou, ChinaColor:
WhiteShippingPort:
Shenzhen, ChinaLeadTime：
15 DaysBrand:
PQProduct Description

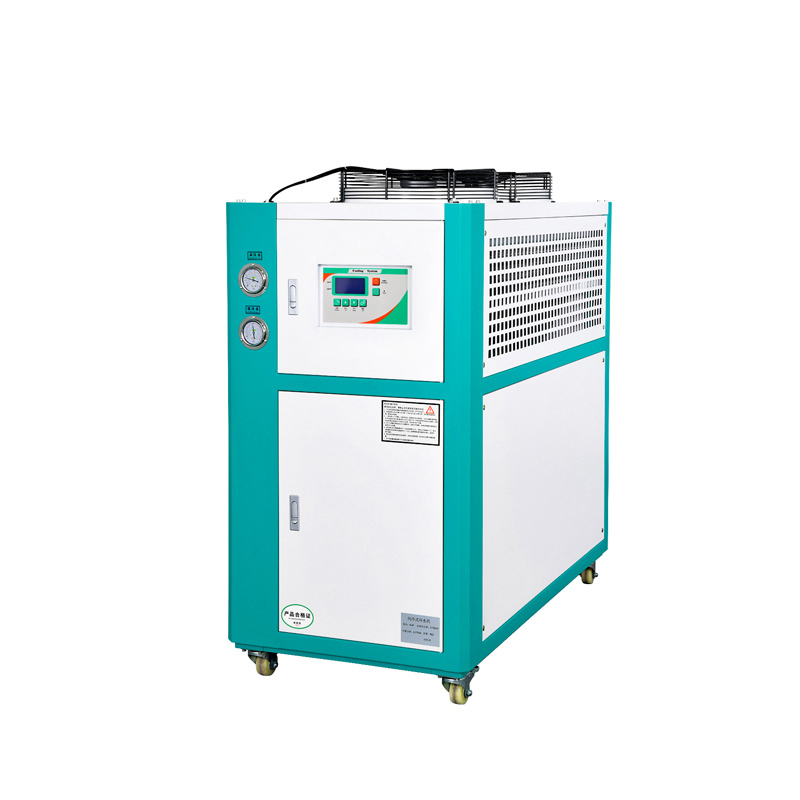

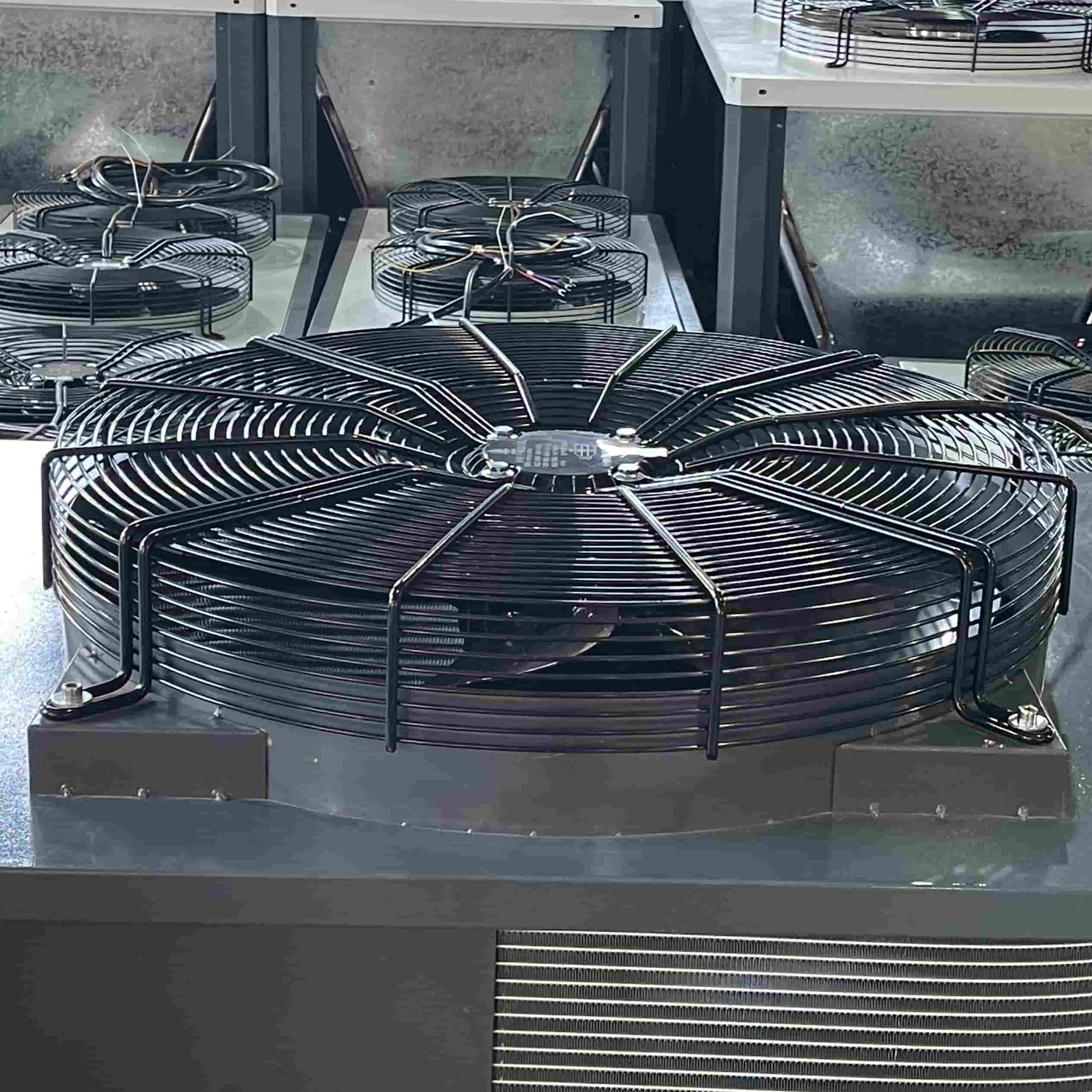

For scenarios where water sources are limited or cooling towers are inconvenient to install, air-cooled chillers combine high-efficiency compressors with corrosion-resistant condensers, significantly saving energy compared to traditional models. The variable frequency fan intelligently adjusts the speed according to the load, operates with low noise, and optimizes energy consumption. With a user-friendly PLC touch panel, temperature control and status monitoring can be easily achieved. The fully enclosed, dustproof steel cabinet design is sturdy and durable, suitable for harsh industrial environments or outdoor installations. It can provide a flexible and reliable cooling solution without the need for a complex water circulation system.
Product Parameters
| Air-Cooled Chiller Series | ||||||||||||||||
| Model | Product Name | 1HP | 2HP | 3HP | 5HP | 6HP | 8HP | 10HP | 12HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | 60HP |
| Power Supply | 220V/50hz | 380V/50hz | 380V/50hz | |||||||||||||
| Cooling Capacity | ×1000Kcal/H | 2.5 | 5 | 7.5 | 12.5 | 15 | 20 | 25 | 30 | 37.5 | 50 | 62.5 | 75 | 100 | 125 | 150 |
| kW | 2.8 | 5.68 | 8.4 | 14 | 16.8 | 22 | 28 | 33.6 | 42 | 56 | 70.5 | 84 | 120 | 140 | 180 | |
| Refrigerant | Name | R22 | R22 | |||||||||||||
| Control Mode | Capillary Tube | Expansion Valve | ||||||||||||||
| Compressor | Type | Scroll Type | Scroll Type | |||||||||||||
| Power (kW) | 0.75 | 1.5 | 2.25 | 3.75 | 4.5 | 6 | 7.5 | 9 | 11.25 | 15 | 18.75 | 22.5 | 30 | 37.5 | 45 | |
| Fan | Air Volume (km³/H) |
2.35 | 2.35 | 4.216 | 6.57 | 6.57 | 9.8 | 9.8 | 13 | 17 | 26.64 | 26.64 | 34 | 51 | 52 | 62 |
| Power (kW) | 0.15 | 0.15 | 0.15 | 0.21 | 0.21 | 0.25 | 0.25 | 0.25 | 0.6 | 0.98 | 0.98 | 0.98 | 0.98 | 0.98 | 0.98 | |
| Ambient Temperature | ≤35℃ | ≤35℃ | ||||||||||||||
| Model | Product Name | 1HP | 2HP | 3HP | 5HP | 6HP | 8HP | 10HP | 12HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | 60HP |
| Evaporator | Water Tank Capacity (L) | 40 | 50 | 60 | 65 | 140 | 140 | 150 | 230 | 350 | 350 | 450 | 550 | 550 | 600 | |
| Connection Diameter (DN) | 25 | 40 | 50 | 65 | 80 | |||||||||||
| Water Pump | Flow (L/min) | 40 | 50 | 80 | 100 | 100 | 180 | 300 | 300 | 300 | 460 | 460 | 750 | 750 | 750 | 1100 |
| Power (kW) | 0.37 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 5.5 | |||||||||
| Lift (M) | 14 | 16 | 16 | 16 | 22 | 22 | 22 | 22 | 22 | |||||||
| Description of The Whole Machine |
Length (cm) | 64 | 64 | 60 | 60 | 60 | 105 | 105 | 105 | 175 | 190 | 190 | 240 | 220 | 220 | 260 |
| Width (cm) | 52 | 52 | 65 | 65 | 65 | 75 | 75 | 75 | 86 | 110 | 110 | 95 | 240 | 240 | 185 | |
| Height (cm) | 66 | 66 | 140 | 140 | 140 | 140 | 140 | 140 | 161 | 180 | 180 | 198 | 190 | 190 | 210 | |
| Weight (kg) | 65 | 80 | 120 | 140 | 180 | 320 | 350 | 380 | 680 | 830 | 830 | 1200 | 1330 | 1350 | 1800 | |
| Fan (mm) | 350 | 350 | 400 | 500 | 550 | 630 | 630 | 630 | 630 | 630 | 630 | |||||
| Safety Protections: Overload, phase sequence, overheating, and flow protection. |
||||||||||||||||
Key Features
✅Stainless Steel Construction for Durability: Built with high-strength stainless steel, the crusher resists wear and impact, ensuring long-term reliability even under frequent heavy-duty operations—ideal for processing fibrous or tough materials.
✅Automatic Recycling Fan for Efficiency: Integrated fan system collects crushed materials in real time and transports them to designated containers, eliminating manual cleanup and reducing dust for seamless integration with automated production lines.
✅Double-Layer Soundproof Enclosure: The sealed, sound-insulated housing minimizes operational noise, creating a quiet workspace that meets strict noise standards in pharmaceutical, food, and other sensitive industries.
✅Pure Copper Motor for Stable Performance: The pure copper motor offers excellent conductivity and heat dissipation, delivering consistent high torque for efficient crushing of soft plastics, fibers, and more, reducing motor overheating risks.
✅Time Relay for Customizable Operation: Equipped with a time relay device, it supports customizing the crushing time and interval to avoid over-crushing or insufficient efficiency.
✅Visual window: The machine body is equipped with an explosion-proof visual window to observe the material status and particle size in the crushing chamber in real time.
✅Flexible adaptation of the recycling system: It supports seamless connection with the external recycling system, and can customize the crushing and recycling plan to meet the needs of different working conditions.
Product Detail Display

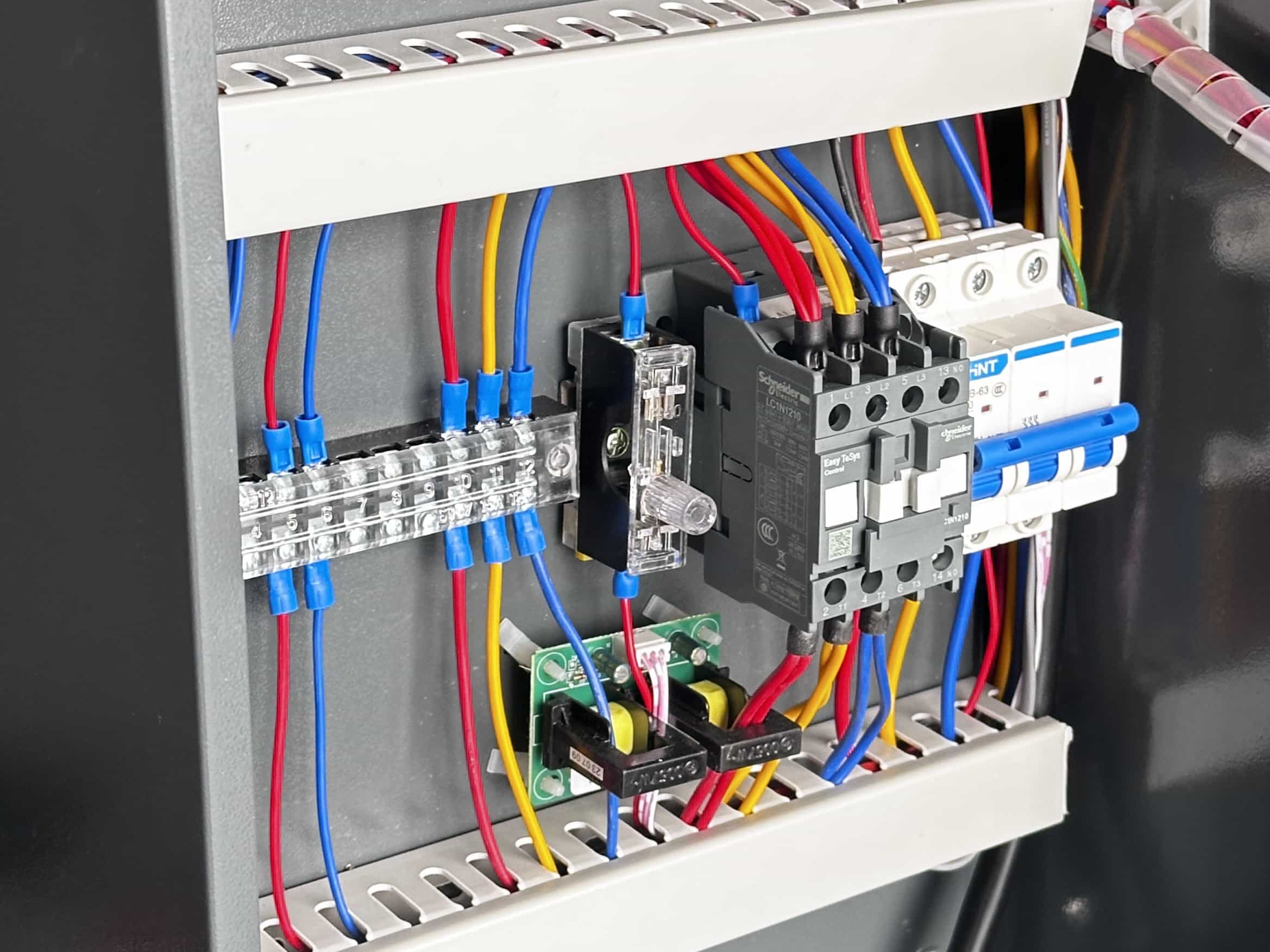

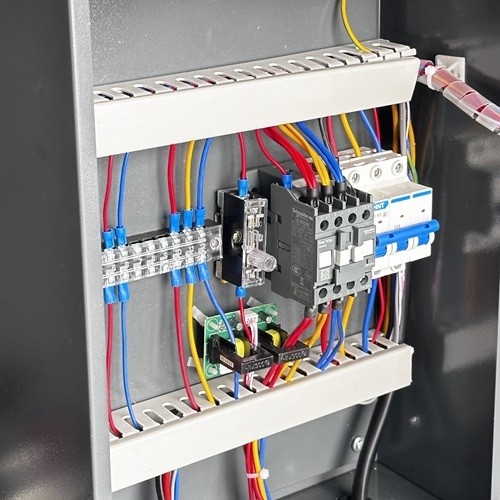

SCHNEIDER CONTACTOR
With a load circuit breaker, compressor pump overload protection.

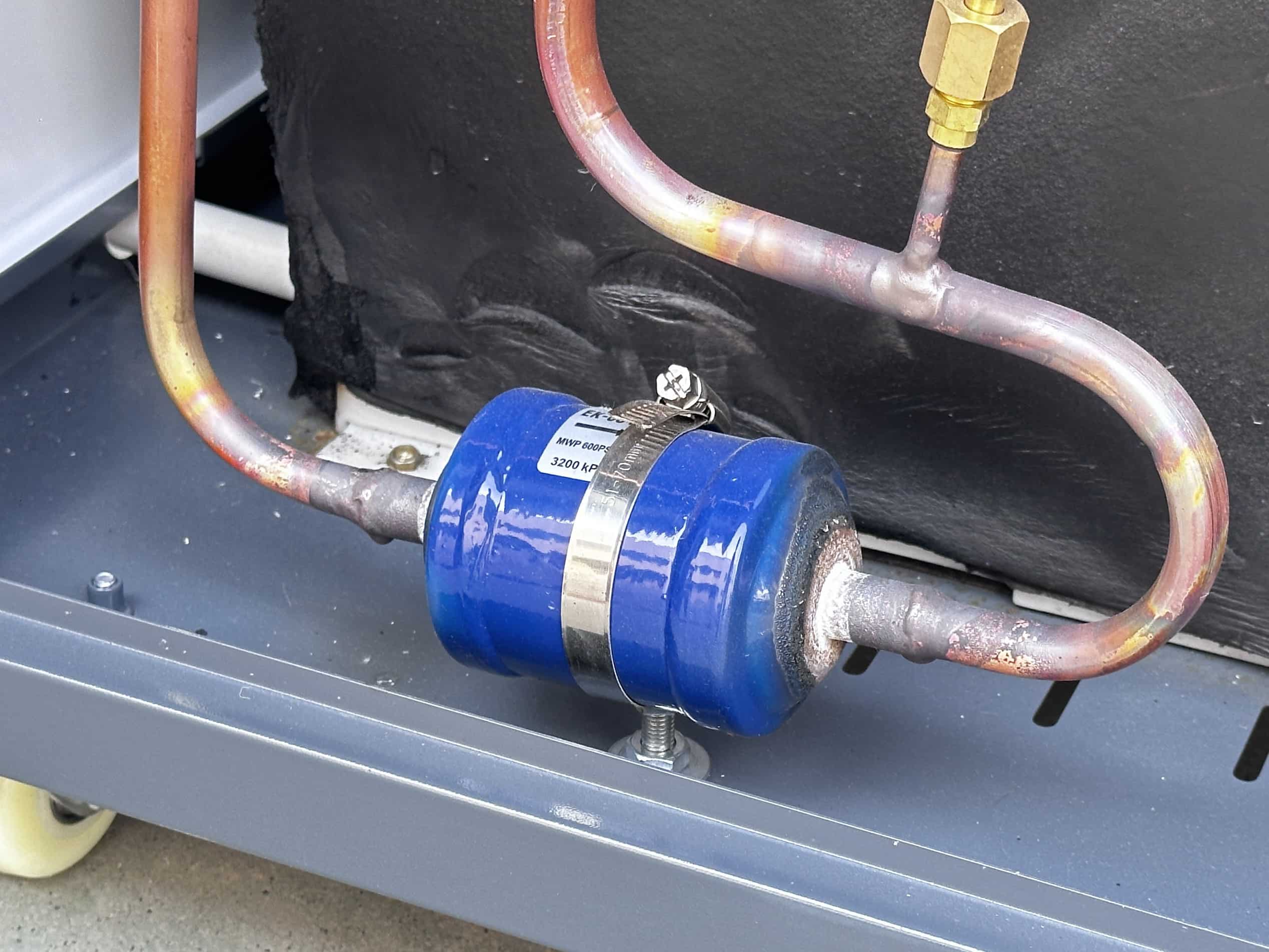

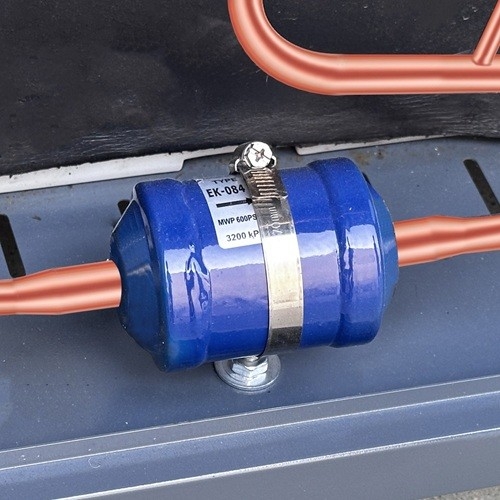

EMERSON FILTER
Filter out impurities and foreign matter to ensure
that water cannot enter the water cooler system.
