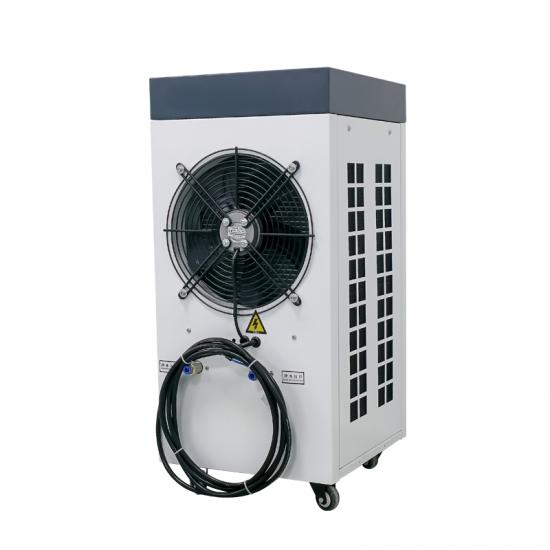

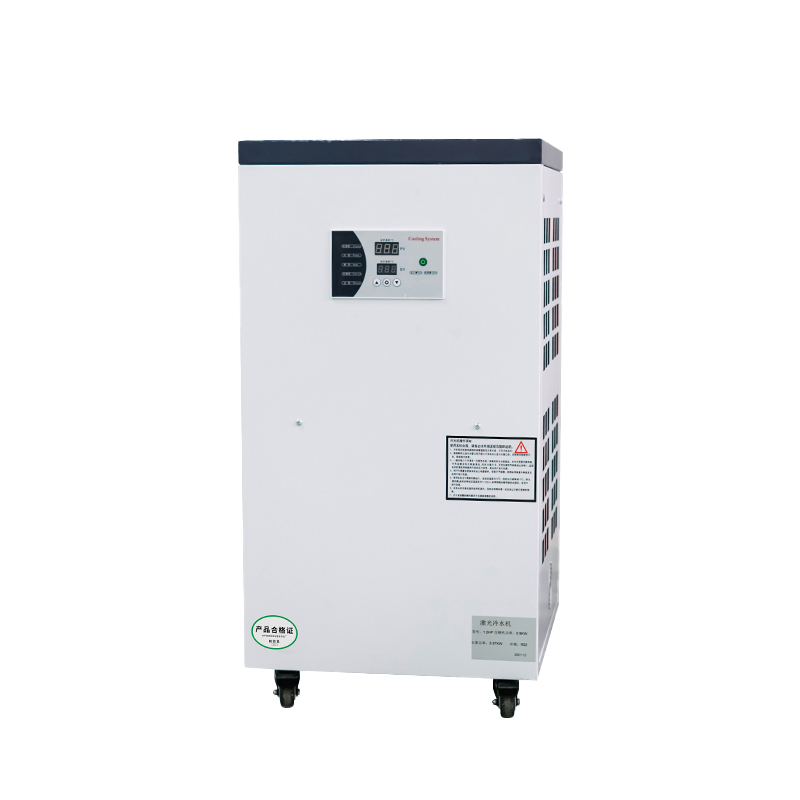

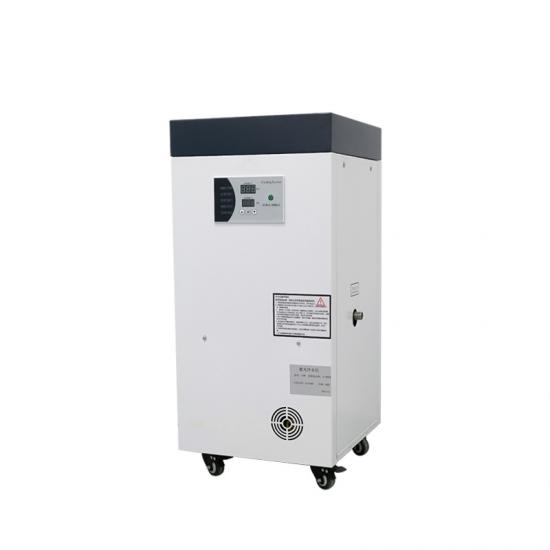

Equipped with branded compressors and Brunp controllers, the laser chiller achieves precise temperature control, low-power, silent operation, and high durability. It is compatible with fiber lasers, CO₂ lasers, and various laser processing equipment to ensure stable cooling needs in industrial scenarios.
Order(MOQ):
1ProductOrigin:
Huizhou, ChinaColor:
WhiteShippingPort:
Shenzhen, ChinaLeadTime：
15 DaysBrand:
PQProduct Description
The performance of laser equipment depends on stable temperature control, and this machine is designed to meet the cooling needs under different loads. The high-efficiency compressor and corrosion-resistant heat exchanger work together to maintain the water temperature in the ideal range, ensure stable beam quality, and extend the life of laser components. The intelligent control system automatically adjusts the cooling capacity according to the equipment's needs, reducing energy consumption and operating costs. The user-friendly touch screen displays key parameters such as water temperature and flow, and the built-in alarm function prompts potential problems such as low water level and abnormal pressure in real time. Whether it supports high-power laser cutting in automobile factories or precision laser marking in electronics factories, the water chiller can ensure the efficient operation of laser systems.
Product Parameters
| Parameter Model | 0.6HP | 0.8HP | 1HP | 1.2HP | 1.5HP | 2HP | ||
| Cooling Capacity |
W/H | 1520 | 1673 | 2450 | 2900 | 4000 | 5480 | |
| kcal/H | 1307 | 1438 | 2107 | 2494 | 3440 | 4712 | ||
| Temperature Control Range |
5~30℃, the recommended temperature difference within the allowable range is 3℃~5℃, which is beneficial to energy saving and prolonging the service life of the equipment, ±0.3℃ (customizable). | |||||||
| Ambient Temperature | ≤35℃ | |||||||
| Power Supply | 220V/50Hz | |||||||
| Total Power |
W | 745 | 1145 | 1210 | 1345 | 1743 | 2213 | |
| Throttling Method | Capillary | |||||||
| Compressor | Power(W) | 605 | 685 | 750 | 885 | 1230 | 1700 | |
| Refrigerant | R22 | |||||||
| Fan Power | W | 55 | 90 | 90 | 90 | 143 | 143 | |
| Water Pump | Head | (m) | 7~10 | 24~30 | 24~30 | 24~30 | 24~30 | 24~30 |
| Power | (W) | 85 | 370 | 370 | 370 | 370 | 370 | |
| Water Flow | L/min | 15 | 33 | 33 | 33 | 33 | 33 | |
| Water Tank Capacity | 11L | 16L | 16L | 22L | 22L | 24L | ||
| Inlet and Outlet | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | ||
| Net Weight (kg) | 37 | 48 | 56 | 63 | 70 | 80 | ||
| Dimensions(mm) | 470 | 413 | 413 | 500 | 500 | 550 | ||
| 380 | 400 | 400 | 470 | 470 | 505 | |||
| 589 | 871 | 871 | 905 | 905 | 972 | |||
Key Features

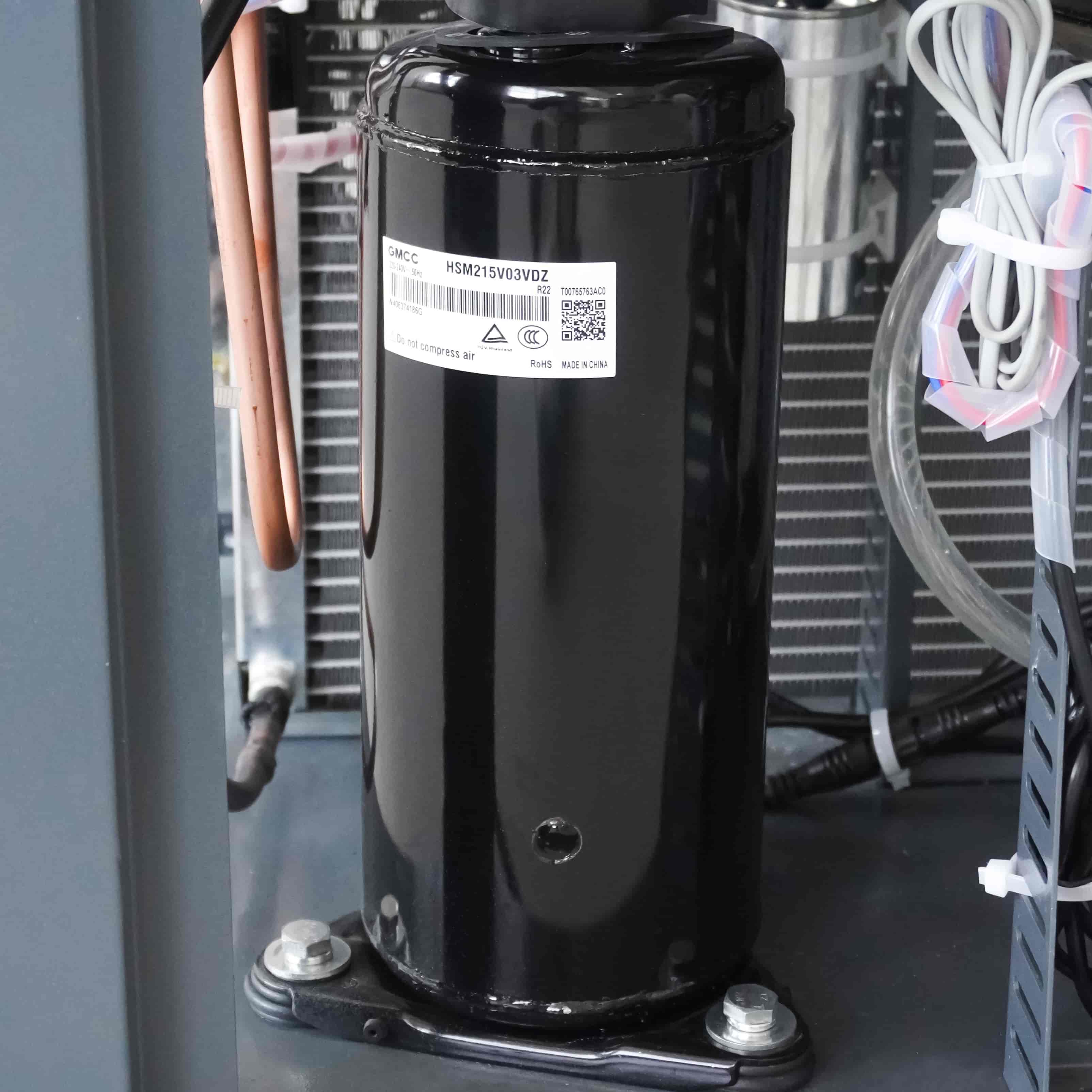

✅Brand Compressor: Equipped with an internationally renowned brand compressor, low vibration design, and efficient heat dissipation structure, the operating noise is significantly lower than the industry level.
✅Bangpu Intelligent Temperature Control: Using Bangpu professional controller, supporting intelligent PID temperature adjustment, automatically adapting to the power change of laser equipment, maintaining constant water temperature, and avoiding temperature fluctuations affecting beam quality.

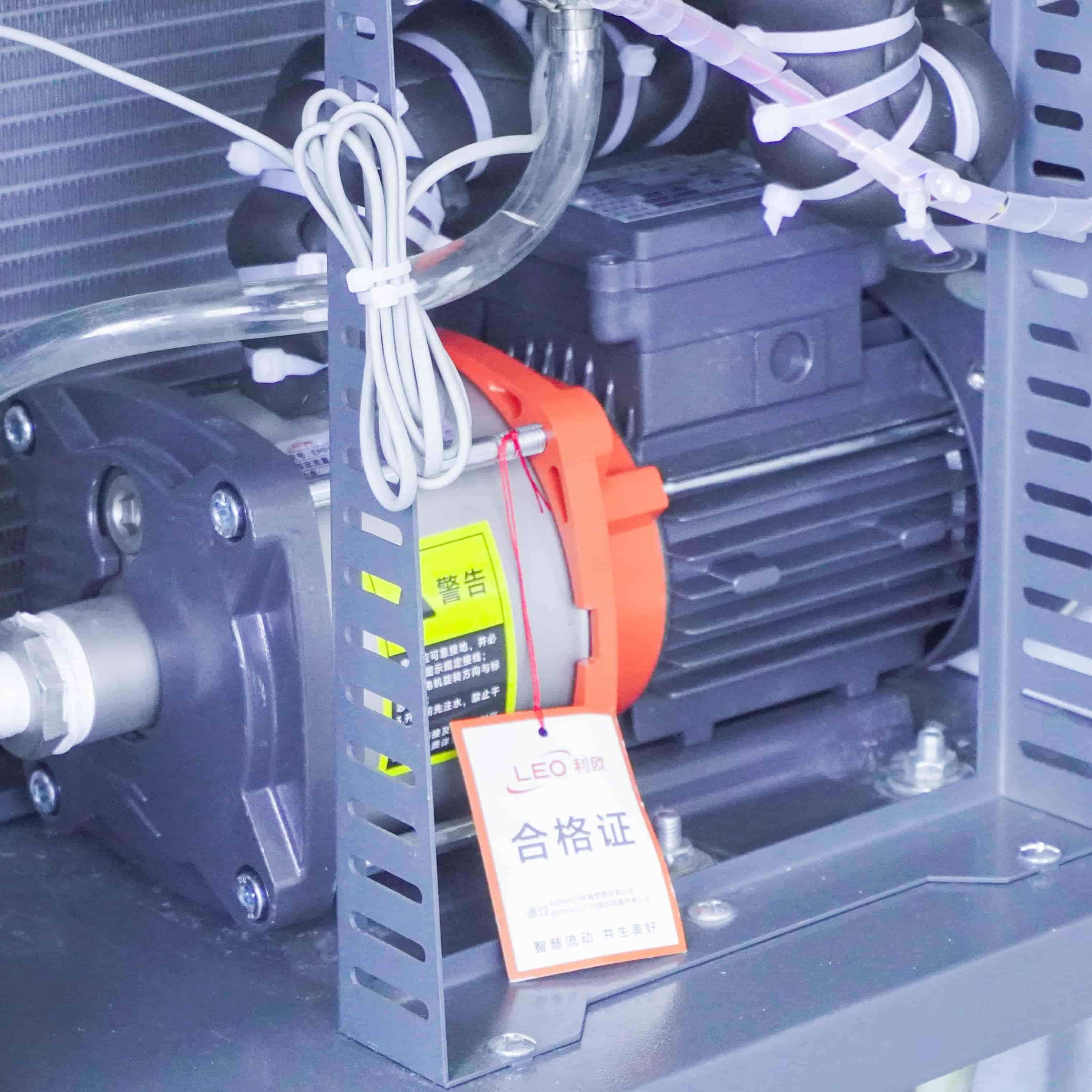

✅Stainless Steel Water Pump: With large flow and high head characteristics, strong corrosion resistance, suitable for deionized water, antifreeze, and other cooling media.

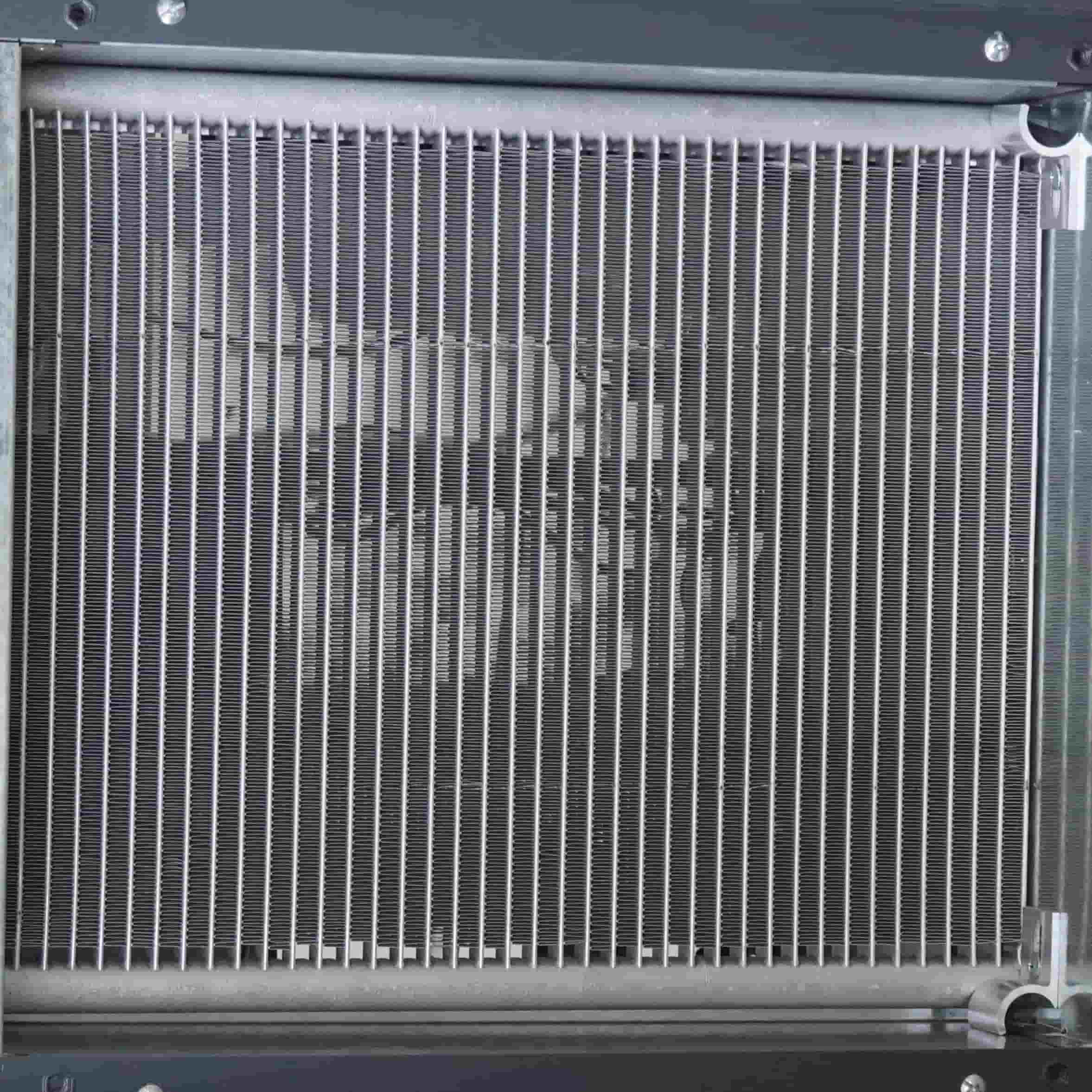

✅Pure Copper Coil: Ensure that the water quality is pure and free of impurities, reduce the risk of scaling in the laser cavity, and extend the service life of the equipment.

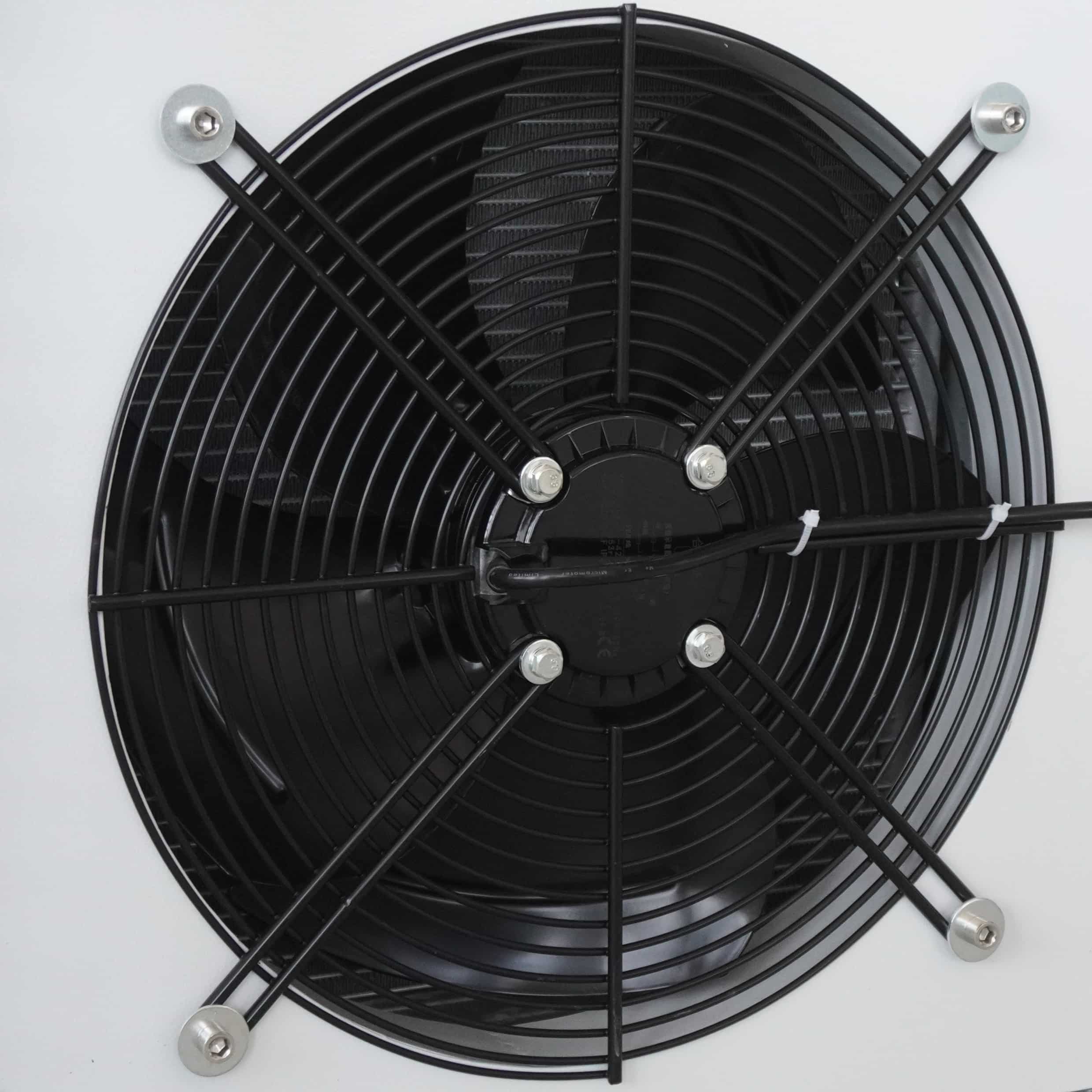

✅External Rotor Fan: Equipped with an external rotor axial flow fan, strong wind force and small wind resistance, quickly takes away the heat of the compressor and condenser, and maintains efficient heat dissipation even in a high temperature environment.
✅High-Capacity Capacitor: Built-in high-capacity capacitor stabilizes power input, effectively filters voltage fluctuations, and protects the control system from electromagnetic interference.
✅Dust-Proof Design: The fully enclosed body is equipped with a detachable dust-proof net to block the invasion of industrial dust, reduce the maintenance frequency of internal dust accumulation, and is suitable for dusty processing environments.
Product Detail Display
BRAND COMPONENTS
Make Better Quality To Make Customers More Assured

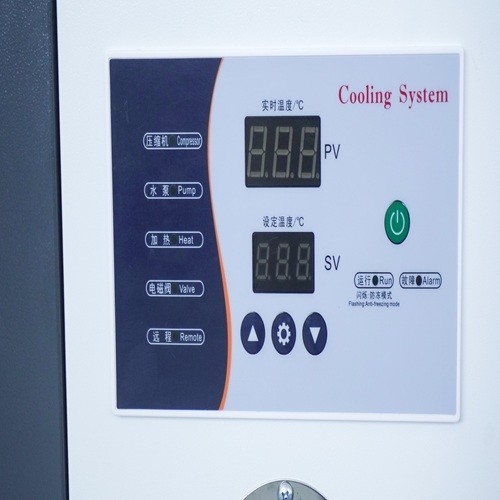

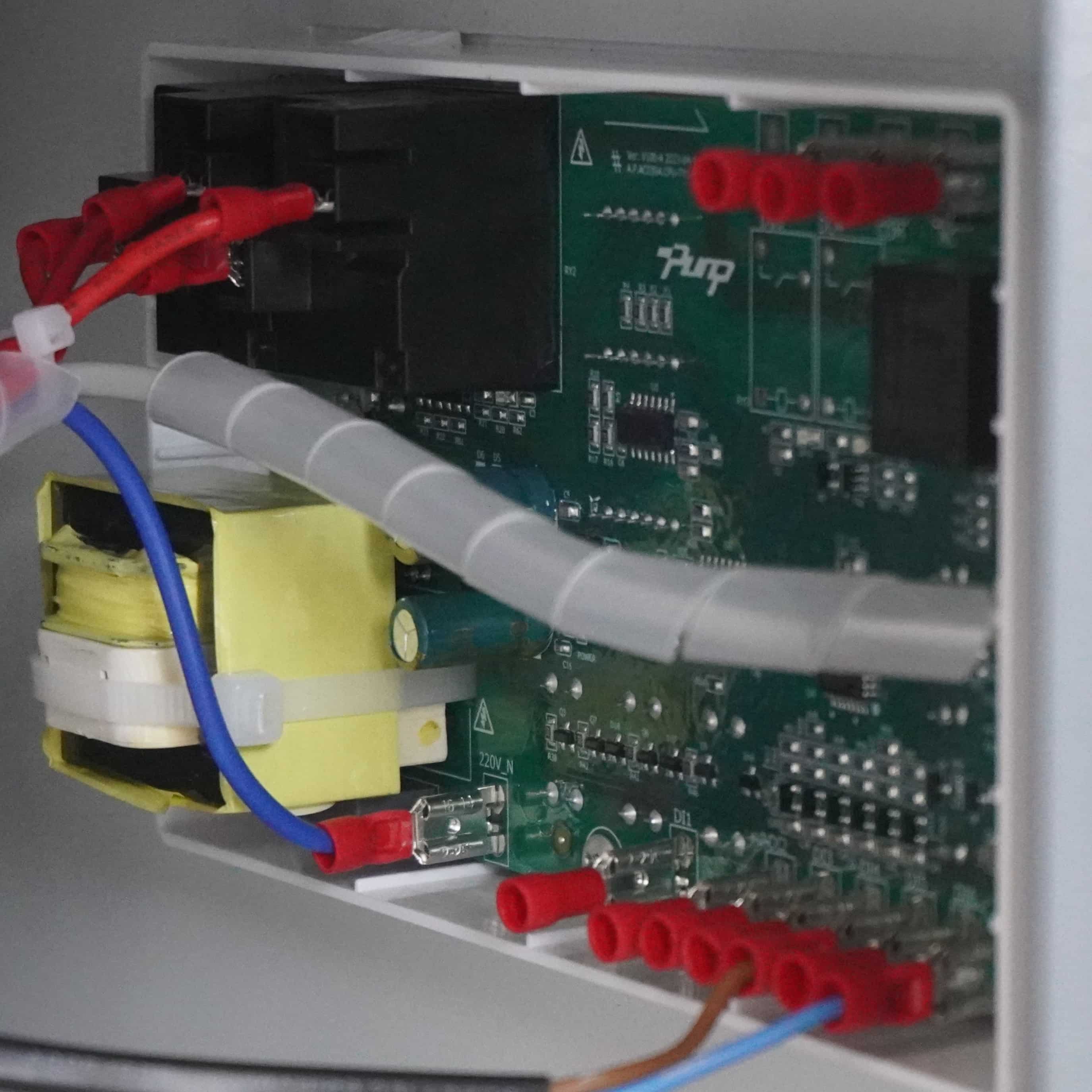

Bangpu Controller
Precise Temperature Control
Stable Performance, Simple Operation

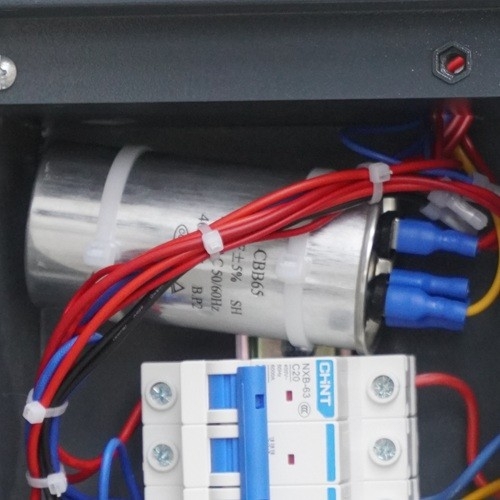

Durable High-Capacity Capacitor
Stores Electricity
Has the Function of Blocking DC

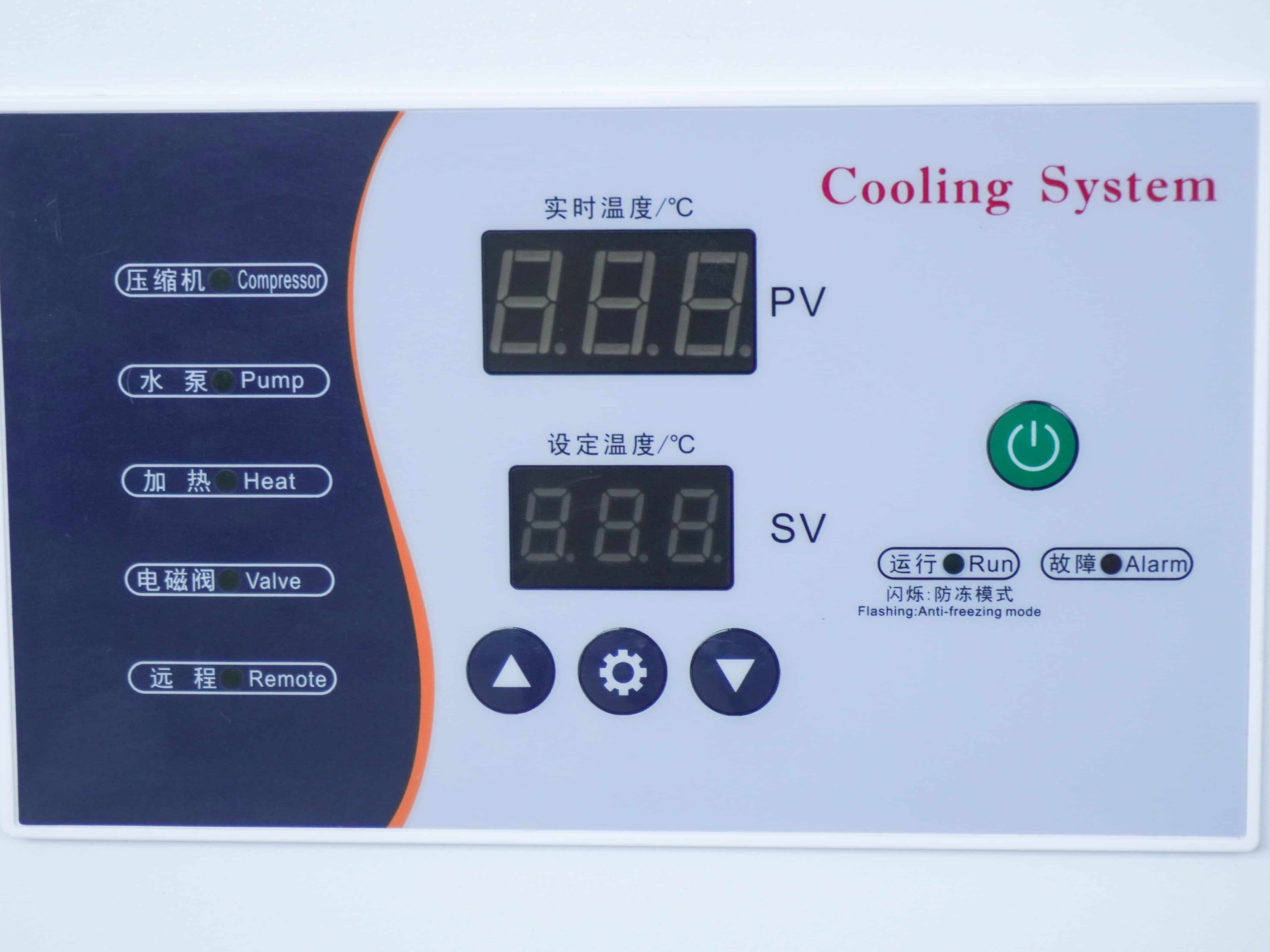

HIGH-END MICROCOMPUTER-OPERATED TEMPERATURE CONTROL
Customizable Temperature Difference ±0.3°C
Temperature Error ±1
Precise Temperature Control Temperature Range 5-30°C

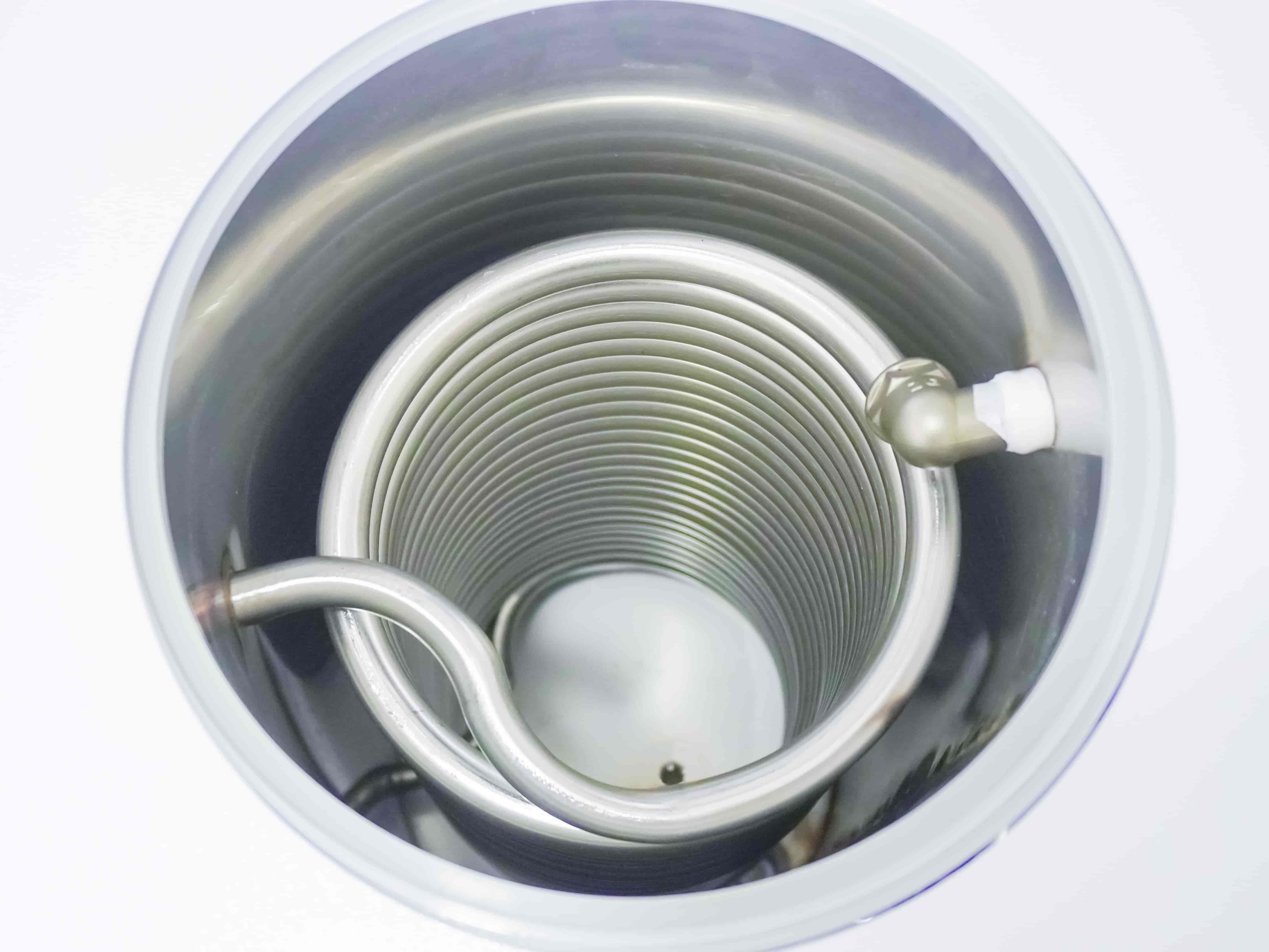

STAINLESS STEEL COPPER TUBE WATER TANK
The water tank is installed in an immersed manner.
Copper tube has a good heat exchange effect.
Plate and shell, and tube evaporators can be customized.

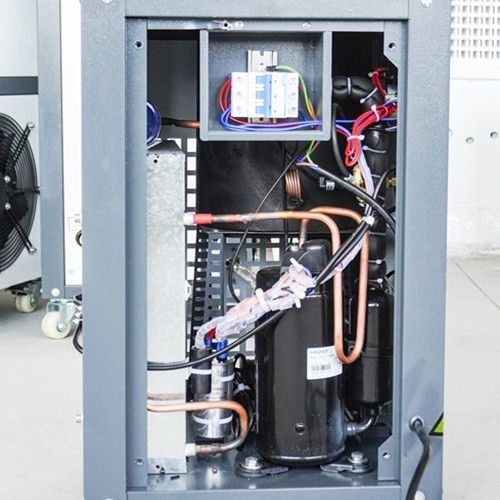

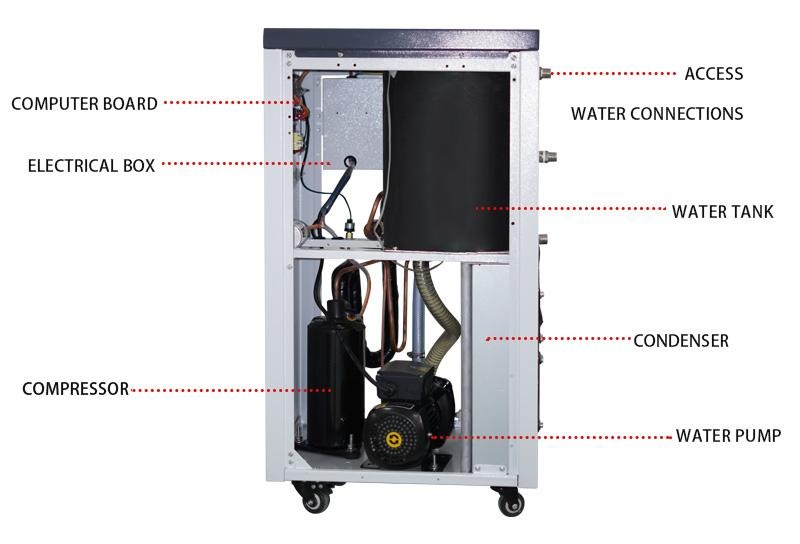

PRODUCT INTERNAL STRUCTURE DIAGRAM
▶Yes, we are a manufacturer with over 10 years of experience.
2) How can I place an order?
▶You can contact us by email about your order details or place an order online.
3) What's the order procedure?
▶We issue you a Proforma Invoice after you confirm the order. And then you pay the deposit before we go into production. It usually takes 7-15 days for production. We will contact you for shipment details and the balance payment when the machine is ready. After payment has been settled, we will ship out the machine.
4) How can I pay you?
▶You can make payment by T/T (telegraphic transfer), Western Union, Moneygram, and L/C.
5) Do you have a manual for the machine?
▶Yes, of course. It is in the English version. We will send it with the machine.
6) Can you offer us the necessary paperwork for customs clearance?
▶Yes, of course. We will send you all the papers you need.
